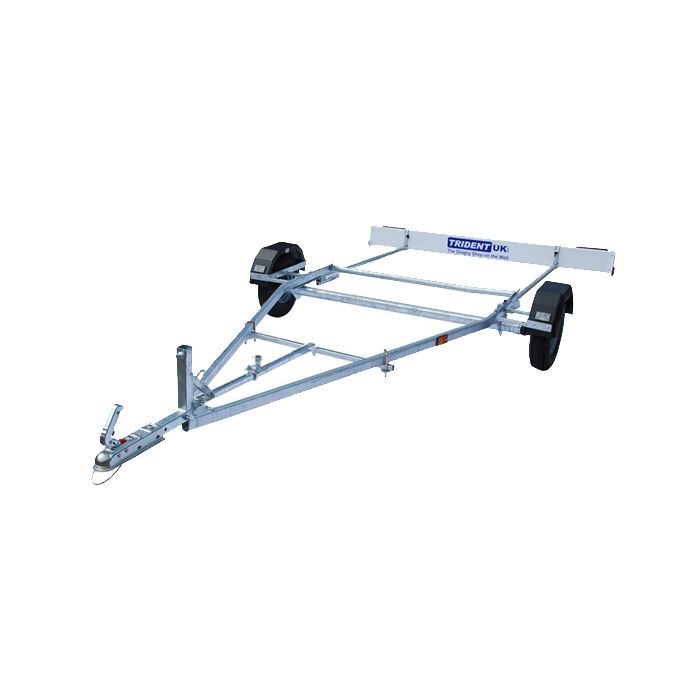

Trident Vario 1 Road Base

Trident Vario 1 Road Base is manufactured in the UK
Trident Vario 1 Roadbase.
SKU
TRTRAVRB1
In stock
Description

This is our UK DVSA compliant Vario 1 lightweight Road Base Trailer, designed with over 15 years of experience for carrying dinghies with their trolleys. This road base is suitable for boats up to 4.4m (14ft 6ins), just roll your boat up onto the road base while it sits on its trolley.

The Road Base Trailer includes;

• Mast Support bracket, just add a mast support if you need one or at a size to suit your towing vehicle
• 8 inch road wheels
• Lighting Board with 6 metre cable
• Retractable/removable arms for your Lighting Board
• Simple and easy to use, hand operated Lighting Board fasteners
• Full width rear roller - to make it easier to pull your boat and trolley onto the Trailer
• Adjustable front round locating pin to hold trolley in place
• Tie down anchor points (front and back)
• As standard this will take our 11ft to 14ft 6in Launching Trolleys (excluding our Heavy Duty Trolleys)
• Pre drilled to take a jockey wheel, which can be added at the time of purchase or later
• Supplied flat packed so we can easily ship the item
• All tools are included for assembly, which is now quicker and easier


Important Dimensions


Please note that although our trailers are designed with the intention of been universal, there are many different trolley designs for different types of boats. We suggest that you check to make sure your trolley fits on the road base before purchasing. Normally the important parts are the length of the axle and the position of the trolley wheels. If you have any questions please email or call us. Alternatively why not buy one of our trolleys for a guaranteed great fit.



Distance between the mud guards 1530mm If the outside of your trolley wheels are further apart, your trolley will still fit but you will need to remove the trolley wheels.
Width of the trailer frame 1245mm If the inside of your trolley wheels are closer, then you will need to remove the trolley wheels when you put the boat on the trailer.
Width of the roller 1190mm The distance from the outside of your side arms where they join the axle of your trolley need to be less, otherwise the trolley won't fit.
Locating pin to roller 2620mm This is the maximum distance the locating pin can be set from the aft of the roller




Trailer Dimensions and Capacity


Unladen Trailer Weight 68Kg Excluding lighting board, mast support and any extra accessories.
Gross Trailer Weight 300Kg Maximum Total weight of trailer including load.
Maximum Payload 232Kg This is the maximum load that can be carried by the trailer, don't forget to include your trolley into this weight.
Width 1850mm Maximum width of the trailer (this is at the mudguards)
Length (with out lighting board) 3200mm Length of trailer with lighting board and brackets removed
Length (with lighting board) 4450mm Length of trailer with lighting board and brackets fitted.
More Information
SKUTRTRAVRB1
Reviews
.
Product Questions (15)
Customer Questions
Hi Paul,It would be best to either rotate the tabs so they are out the way or remove themI have seen a few Laser Performance trolleys and I don't think any of them will lock in at the rear, some pull up to the roller no problem and some (older trolleys) require the wheels to be removed to go forward enough. The boat is then strapped to the roadbase so it makes little difference if the trolley is locked or not We are looking into the option of a shaped tab which will lock the rear in but have no stock as yetRegardsDavid
loader
Loading...
Hi Dorine Yes this is the road base that a steel RS Feva trolley will fit on We would need a full address to quote for delivery, if you email us we will then ask delivery companies to quote us Regards David
loader
Loading...
Hi John Our Vario 1 road base will fit all our trolley for boats up to 14 1/2 feet long. So it will be fine for a Laser, Solo, GP14 etc etc Regards David
loader
Loading...
Hi Nicholas The product description is under the image, you will need to scroll down to see it The Vario 1D has large 10 inch wheels instead of 8inch. The Vario 1D has a Gross Trailer Weight of 500Kg instead of 300Kg give an extra 196Kg of Pay Load. Regards David
loader
Loading...
Hi Simon I can't see this being practically possible sorry, there is a fair amount of leverage and stress on those arms so the attachment needs to be spot on and we spent a lot of time designing the frame Regards David
loader
Loading...
Hi Tom Our standard is a 25mm round pin on a plate that slides along the draw bar. We could supply a 25mm flat bar instead of the round pin but this would be an extra item and probably cost £20 Regards David
loader
Loading...
Hi and thanks for your enquiry, the trailer does not come with a mast support this is an additional item. They come in 3 sizes 1.1m 1.45m and 1.8m. if you need help figuring out what size you need just get in touch. The Trailer is designed to take most A frame trollies, what boat and trolley are you looking to tow? Many thanks Jake
loader
Loading...
#N/A
loader
Loading...
Hi Philip You could go with our Vario 1 which should take your trolley, see dimensions in the description but the Bosun will be about the largest boat it will take. Or our Vario 2 which will take the Bosun and boats up to 16 1/2 feet long Regards David
loader
Loading...
#N/A
loader
Loading...
Hi OlofYes the Vario 1 road base is what we'd recommend for the Ok dinghy.You can double check it's compatible with your trolley with the measurements in the description of the productRegardsDavid
loader
Loading...
Hi DavidOnce the Laser is loaded the lighting board sits about 3 feet forward of the transom which is in accordance of the EU towing laws.RegardsDavid
loader
Loading...
Hi DennisThe Vario 1 road base is designed to take our trolleys that fit boats up to 14' 6", it will also carry many other manufacturers trolleys however the connectivity may not be as good and extra tie downs may be required.The issue with an outboard fitted is the balance point is bought aft and therefore requiring a longer trailer/trolley, the heavier the outboard the further back the balance point.So the first thing I'd advise is to find the balance point of the boat and we can then look at a trolley and road base or road trailerRegardsDavid
loader
Loading...
Hi DavidYes the lighting board is included and it has a 6 meter cableRegardsDavid
loader
Loading...
Hi MichaelThe Vario 1 will fit all our trolleys suitable for up to 14 foot boats so yes the Topper and Laser trolley will fit on and make a combi trailerRegardsDavid
loader
Loading...
