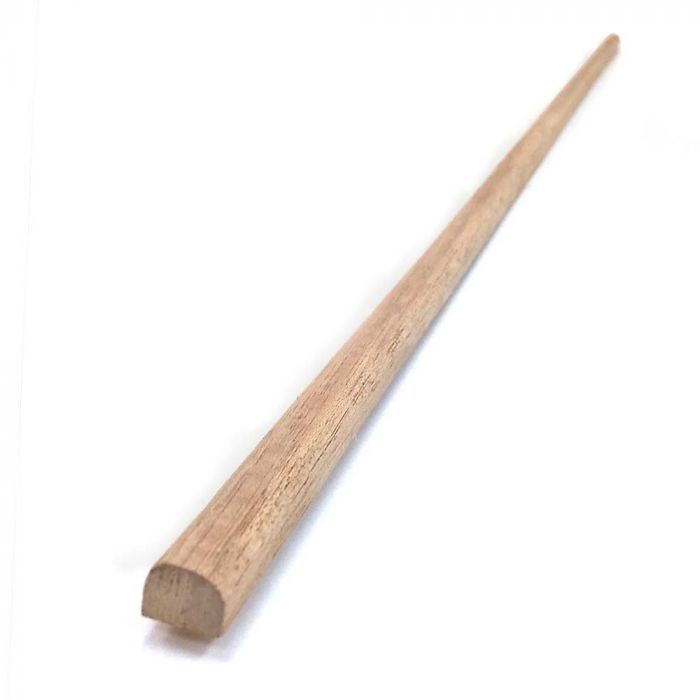

Mirror Bilge Piece

Hi Glenn No instructions as this is just a part not a kit. These are likely to have been glued and pinned in place originally so if it's stuck well does it need removing? With a small amount of rot in the floor I'd probably scarf a piece of ply in and use an extra floor batten or 2 to cover the join(s) in the cockpit or if one join is inside the tank add a hatch cover and thread a piece in there to cover the join too. If you clean the rot out and you have a thin amount of ply left you could glass over and build up with layers. Happy to talk through that more if needed Regards David

Hi Simon The bilge pieces have a measurement in the class rules 1.4.9 The bilge keels shall conform with the diagram. They shall be not less than 13mm in width and not less than 9mm depth for a length of not less than 915mm. Regards David
